6 New Features in Data Grid 8.3 Release

Red Hat Data Grid is a distributed, cloud-based datastore offering very fast response times as an in-memory database. The latest version features cross-site replication with more observability, two new types of SQL cache stores for scaling applications with large datasets, improved security, support for Helm charts, and a better command-line interface (CLI).

This article is an overview of new features and enhancements in this latest version of Red Hat Data Grid.

Cross-Site Replication With More Observability

With the latest Data Grid release, you can track cross-site replication operations for each of the backup locations and their caches, including response times and the number of RELAY messages exchanged, as shown in Figure 1.

data grid cluster relay graphic

Figure 1. Cross-site replication involves messages at many different levels.

Data Grid operators can also configure the number of relay nodes for cross-site replication. This flexibility enhances the cache’s scalability and performance over multiple sites.

Finally, security is of paramount importance for a cross-site cluster, so it enabled TLS security for router-based cross-site replication. (Scroll down for more about security enhancements in a later section.)

Scaling With SQL Cache Stores

What do you do if you have a lot of data in a database and want to load the data into the cache? Database schemas can be complex and users might want to define how that data is queried through operations such as SELECT, INSERT, and so on. Perhaps you would also like to support write-through and write-back operations. All of this makes for a complex scenario.

In this release, Red Hat Data Grid added two types of SQL cache store:

  • Table cache store: Loads all data from a single table. Only the table name is required.
  • Query cache store: Loads data based on SQL queries.

Useful things you can do with the new SQL cache stores include the following:

  • Pre-load data from an existing database.
  • Expose cache data with a user-defined schema.
  • Allow read and write operations.
  • Configure the cache store as read-only, and act as a cache loader.
  • Configure the cache store to load values ​​on startup.
  • Use the cache store with composite keys and values ​​through the protocol buffers (protobuf) schema.
  • With the query cache store, use arbitrary select, select all, delete, delete all, and upsert operations.

To set up a cache store, you simply need to drop the database drivers into the server, which can be done with the Operator custom resource (CR) on Red Hat OpenShift. After that, users should be able to create SQL cache stores via YAML, JSON, or XML—also a new configuration feature. An example using Infinispan and the Quarkus Java framework is available on GitHub.

More Security Enhancements

Data Grid now provides full support for TLS version 1.3 with OpenSSL native acceleration and has the increased flexibility and convenience of security in Data Grid 8.3.

Multiple Realms

You can combine multiple security realms into a single realm. When authenticating users, Data Grid Server checks each security realm in turn until it finds one that can perform the authentication.

The following example security realm includes an LDAP realm and a property realm, along with the distributed-realm element:

<security-realms>
   <security-realm name="my-distributed-realm">
      <ldap-realm>
         <!-- LDAP realm configuration. -->
      </ldap-realm>
      <properties-realm>
         <!-- Property realm configuration. -->
      </properties-realm>
      <distributed-realm/>
   </security-realm>
</security-realms>

Multiple Endpoints

Users can now also configure multiple endpoints and define separate security realms for them. This enhancement enables more flexible and secure use.

The following example contains two different endpoint configurations. One endpoint binds to a public socket, uses an application security realm, and disables administrative features. Another endpoint binds to a private socket, uses a management security realm, and enables administrative features:

<endpoints>
  <endpoint socket-binding="public"
            security-realm="application"
            admin="false">
    <hotrod-connector/>
    <rest-connector/>
  </endpoint>
  <endpoint socket-binding="private"
            security-realm="management">
    <hotrod-connector/>
    <rest-connector/>
  </endpoint>
</endpoints>

PEM Files

Users can now add PEM files directly to their Data Grid Server configuration and use them as trust stores and key stores in a TLS server identity.

Deploy Data Grid With Helm Charts

Developers who use Helm charts for application deployment can now use this convenient mechanism to install Data Grid. You can use charts to deploy Data Grid instances, configure clusters, add authentication and authorization, add network access via routes and node ports, enable load balancers, and more, using the Data Grid portal (Figure 2) or the CLI.

data grid helm chart screenshot
Figure 2. Helm charts can be invoked through the Data Grid graphical interface.


CLI Improvements

Data Grid 8.3 has a few updates for developers who prefer working on the command line. For one, you can enable and disable rebalancing of the cluster, track and extract more details about cross-site replication relay nodes, and manage cache availability. Additionally, if you use the general oc OpenShift command, you can now also install the Infinispan extension and use it with ocas shown in Figure 3.

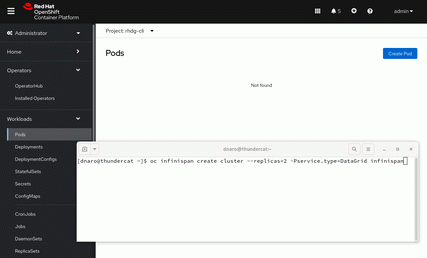

control data cluster from command in red hat data grid
Figure 3. You can control a Data Grid cluster from the command line.

Usability Improvements

Red Hat Data Grid made a few more improvements to increase the usability of Data Grid in this release.

Get Started With Data Grid 8.3

Ready to dive in and try out Data Grid 8.3? These resources will get you started:

  • Zip distributions are available through the Certified Service Provider (CSP) program.
  • Container distributions and Operators are available in the Red Hat Container Catalog.
  • Product documentation is available on the Red Hat customer portal, including a migration guide to help you migrate your existing Data Grid deployments to 8.0.

.
